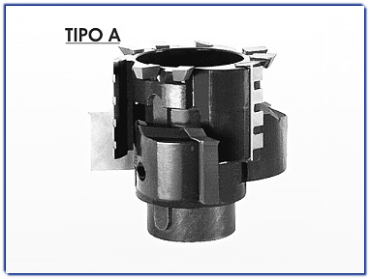

Cutter set for tenoning machine A
PRODUCTS > BRAZED CUTTERS
Article 0170
Technical specifications:
Cutter group, composed of a hogger z = 3 +3 ° SG45 and a cutter z = 3 +6 ri, which allows adjustment of the plug 10 to 35 mm (10 to 42 mm).
The tool is made of Hm reported.
Suitable for hard, soft and glued woods.
Application:
Double tenoning machine type: Bacci, Balestrini, Pade, Greda..

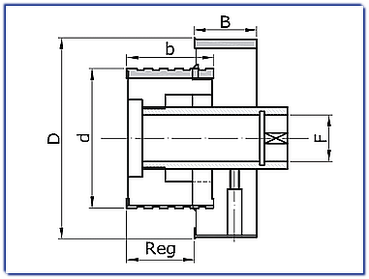

Diameter (D/d) |
Cutting hight (B/b) |
Bore (F) |
Tenon regulation (REG) |
Cutting edges (Z) |
80/60 |
35/30 |
25 |
10 - |
6 ri + 9 sg45° |
100/70 |
45/30 |
25 |
10 - |
6 ri + 9 sg45° |
All measurments are in millimeters (mm). |
