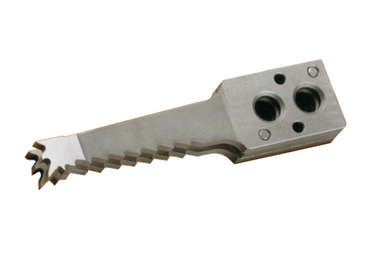

SIMPLE CHISEL

Technical specifications:
The chisel is a cutting tool assembled on an eccentric head and produces mortises in the wood trough an oscillating motion.
The tool's body is made of steel and the cutting blade is made of an HSS steel plate.
Suitable for solidwood.

Application:
Mortiser

MADE IN ITALY

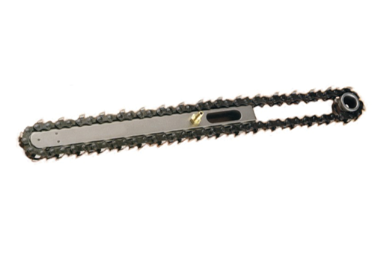

MORTISE CHISEL

Technical specifications:
Single or double chain to make the rectangular mortises in the wood.
The chain mortising equipment is made of a chain, a guide bar and a sprocket.
The double mortise equipment is made of two normal chains, two double mortise guide bars, two double mortise sprockets, a spacer between the bars and a spacer between the sprockets.
All guide bars are supplied with lubricating device except double mortise guide bars with B = 20.
Suitable for solid wood.

Application:
Chain mortise

MADE IN ITALY

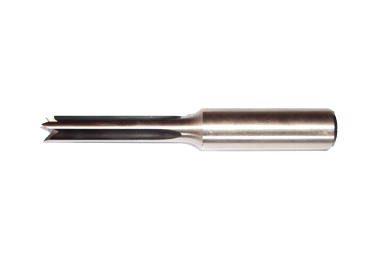

MORTISING BIT - Z 4

Technical specifications:
Mortise bit with two HSS straight cutting edges, haed grinded only.
Suitable for softwood and hardwood.

Application:
Mortising machine

MADE IN ITALY

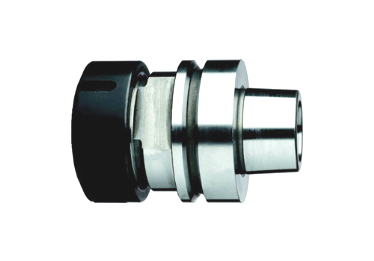

CHUNK WITH HSK SHANK

Technical specifications:
High precision chucks for the new generation pantographs.
Suitable for router bits with cylindrical shank.
Chuck HSK 63 tool holder built according to the standard DIN 69893.
Made of stainless cementation steel with hardened depth 0.8-1 mm, sanded and burnished by HRC 58 +2.
Core strength 800-1000 N/mm ². Precision refaced surfaces externally and internally.There are available standard ER32 and ER40.

Application:
CNC machine

MADE IN ITALY

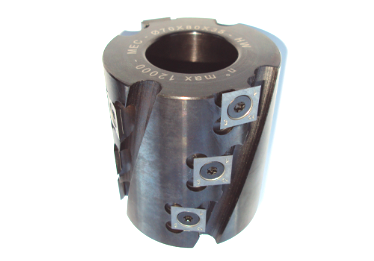

INSERT SPIRAL PLANING CUTTER WITH SQUARE SPURS

Technical specifications:
Insert cutter for planing positioned on a spiral design, with 4/6 starting helicies.
The tool is made with Hc square spur inserts 14x14x2 mm thick.
Suitable for abrasive, hard, soft and glued woods.

Application:
Moulder, spindle moulder

MADE IN ITALY

.
