Mortise chain
Article 1120
Technical specifications:

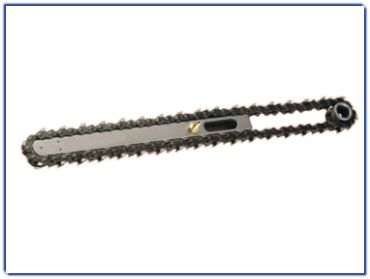

Single or double chain to make the rectangular mortises in the wood.
The chain mortising equipment is made of a chain, a guide bar and a sprocket.
The double mortise equipment is made of two normal chains, two double mortise guide bars, two double mortise sprockets, a spacer between the bars and a spacer between the sprockets.
All guide bars are supplied with lubricating device except double mortise guide bars with B = 20.
Suitable for solid wood.
Application:
Chain mortise.

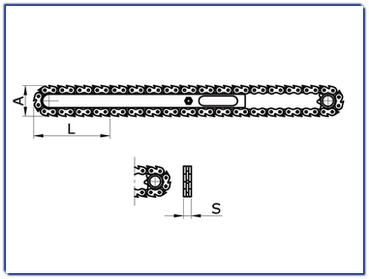

SINGLE MORTISE |
|||
Thickness (S) |
Width (B) |
Depht (P) |
Pitch (N) |
4/5/6/7/8/9/10/11/12 |
40/50 |
150 |
22,60 |
13/14/15/16/17/18/19 |
40/50 |
150 |
22,60 |
20/21/22/23/24/25 |
40/50 |
150 |
22,60 |
28/30/35/40 |
40/50 |
150 |
22,60 |
4/5/6/7/8/9/10/11/12 |
30 |
110 |
16,20 |
13/14/15/16/17/18/20/22 |
30 |
110 |
16,20 |
4/5/6/7/8/9/10/11/12 |
35 |
125 |
16,20 |
13/14/15/16/17/18/20/22 |
35 |
125 |
16,20 |
7/8/9/10/11/12/13/14 |
30 |
150 |
16,20 |
15/16/17/18/20/22/25 |
30 |
150 |
16,20 |
4/5/6/7/8/9/10/11/12 |
20/25 |
110 |
13,70 |
13/14/15/16/17/18/20/22 |
20/25 |
110 |
13,70 |
DOUBLE MORTISE |
|||
Thickness (S) |
Width (B) |
Depth (P) |
Pitch (N) |
6/7/8/9/10/11/12/14 |
40/50 |
150 |
22,60 |
5/6/7/8/9/10/11/12 |
30/35 |
110/125 |
16,20 |
5/6/7/8/9/10/11/12 |
20/25 |
110 |
13,70 |
All measurments are in millimeters (mm). |
