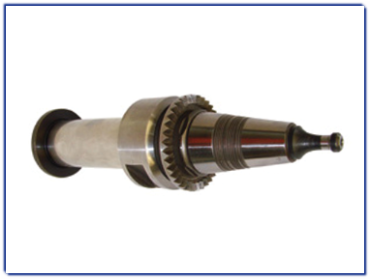

Toothed flange chuck with ISO30 shank carrying shank - OMER

Article 1245

Technical specifications:
High precision chucks for the new generation pantographs.
Suitable for profiled and rebate cutters.
Chuck HSK 63 tool holder built according to the standard DIN 69893. Made of stainless cementation steel with hardened depth 0.8-1 mm, sanded and burnished by HRC 58 +2. Core strength 800-1000 N/mm ². Precision refaced surfaces externally and internally.There are available standard ER32 and ER40.

Application:
CNC machine.
