Insert grooving cutters for guiding groovers
PRODUCTS > INSERT CUTTERS
Article 0320
Technical specifications:

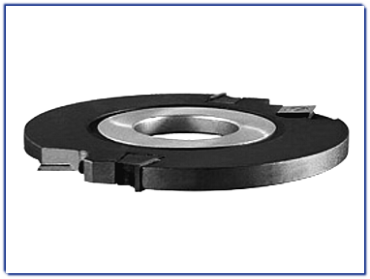

Insert grooving cutters with reversible hm integral inserts to perform channel guide on the moulder.
The tool is made with Hc (brazed tungsten carbide) profiled inserts, 1,50 mm thick, and the spurs on each side of the tool.
Suitable for abrasive, hard, soft and glued woods, MDF.
Application:
Moulder.

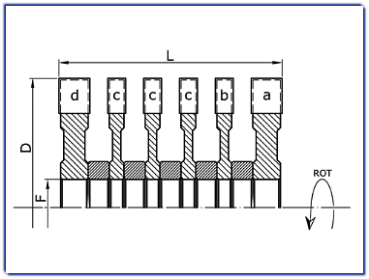

Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
weinig |
|||
125 |
80/100/120/140/170/220/310 |
40 |
4+4 |
s.c.m |
|||
120 |
80/100/120/140/170/230 |
40 |
4+4 |
sicar |
|||
152 |
80/100/160/180/210/230 |
40 |
4+4 |
special guiding groovers |
|||
various |
9/10/10,4/10,5/12/17/20/20,3/35 |
30/35/40/50 |
4+4 |
All measurments are in millimeters (mm). |
