Insert planing cutters HYDRO
PRODUCTS > INSERT CUTTERS
Article 0370
Technical specifications:

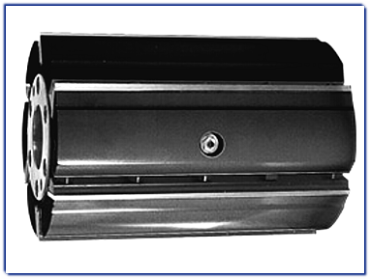

Insert cutter for planing in steel body with HYDRO system.
The tool is made with Hc (brazed tungsten carbide) or HSS (18%W) straight knives 3 mm thick.
The cutter permits the highest feed speed and great wood removal with good surface finishing.
Suitable for hard, soft and glued woods.
Application:
Moulder.

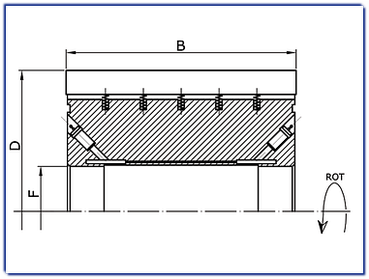

Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
143 |
60/100/130/150/160/230 |
40 |
4/6/8 |
163 |
60/100/130/150/160/180/230/260/310 |
50/60 |
4/6/8 |
203 |
100/150/230/260/310/330 |
50/60 |
6/8/10/12 |
All measurments are in millimeters (mm). |
